NO.：
TS-C4430
Features：

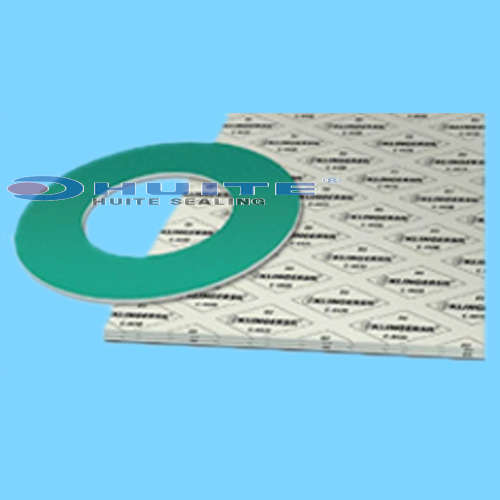

A high-performance compressed synthetic fiber gasket material, which is the first non asbestos gasket material with characteristics similar to high-quality compressed asbestos gasket material, high quality, and excellent chemical resistance. Suitable for air, water, saturated steam, oil, fuel, and various gases. Both sides have 3A anti stick surface treatment, with one side detached from the flange.
最高操作温度 | 430 | ℃ |
最高操作压力 | 100 | bar |
压缩率 ASTM F36A | 8 | % |
回弹率 ASTM F36A (min) | 50 | % |
厚度减小量 23℃ | 8 | % |
厚度减小量 300℃ | 11 | % |
抗拉力 ASTM F152 across grain | 7 | MPa |
气体泄漏 DIN 3535/6 | 1.0 | ml/min |
压力松弛 BS7531 | 31 | MPa |
压力松弛 DIN 52913 (16h, 300℃) | 35 | MPa |
重量增加 ASTM F146 | ||
ASTM （油） No. 3 (5h/150℃) | 3 | % |
ASTM （燃料） B (5h/23℃) | 5 | % |
增厚率 ASTM F146 | ||
ASTM （油） No. 1 (5h/150℃) | 0 - 5 | % |
ASTM （油） No. 3 (5h/150℃) | 0 - 5 | % |
ASTM （燃料） A (5h/23℃) | 0 - 5 | % |
ASTM （燃料） B (5h/23℃) | 0 - 5 | % |
密 度 | 1.7 | g/cm3 |
证明 | P×T | |
可燃性气体 - AGA No. 208 气体供应- DVGW No. 92.01e052 适于饮用水 – AS4020 & WRC 氧气证明 (100bar/85℃) - BAM 食品工业认证 - LNE 防火安全认证- BS5146 通运输 - Lloyds 饮用水- KTW |  | |
Data here reported, corresponding to laboratory and field tests results, are meant as non-binding guideline for gasket selection. No guarantee claim can be inferred from them. When needed, we shall be pleased to assist you with specific technical assistance.
