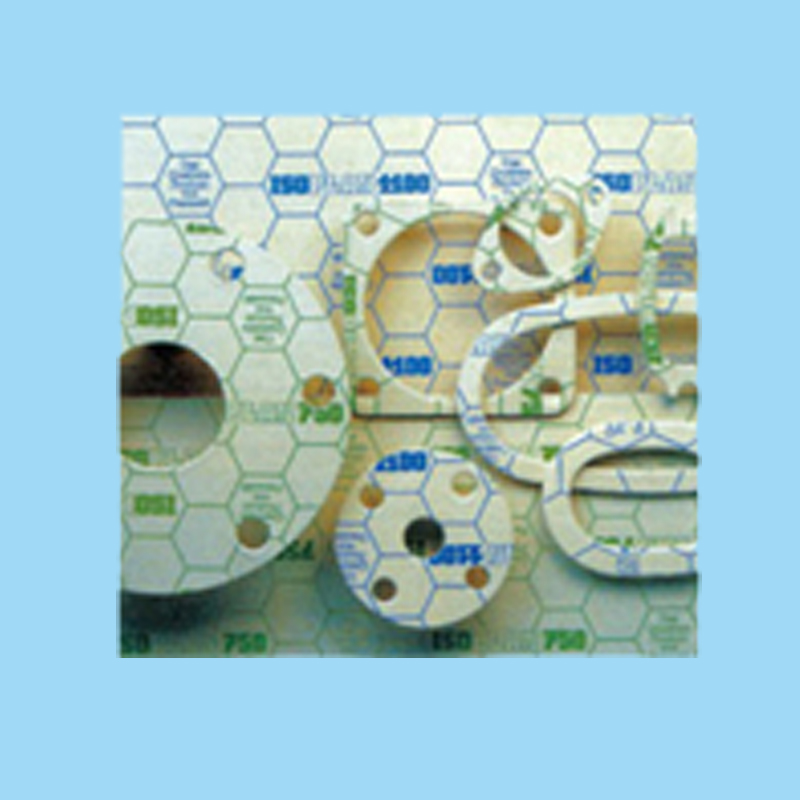

ISOPLAN insulation gasket

ISOPLAN insulation gasket

NO.:

1

Features:

The original materials for producing ISOPLAN insulation gaskets are special ceramics and mineral fibers. After adding fillers and adhesives, they have high temperature resistance characteristics due to their small thermal conductivity and excellent insulation performance. Within the temperature range of 300 ℃ to 400 ℃, the organic adhesive is burned off, and during this process, the ISOPLAN insulation gasket will fade. At high temperatures, this fading phenomenon disappears again.

Details

技术数据 供货数据

ISOPLAN 垫片具有良好的均衡的密度,因此,既适用于高温绝热,也适用于内压最高3bar,的惰性气体密封存。

使用ISOPLAN作为垫片时,合理的安全性和良好的功能是必要的,要确保使用的表面压力不超过10N/mm2并且考虑到垫片的最小宽度。



板材规格:1000×1000mm

可按需提供特种规格

厚度(mm)1.3/1.5/2.0/3.0/4.0/5.0/

6.0/7.0/8.0/9.0/10.0

规格尺寸与厚度公差均为±10%

材料特征
实验室数据,3mm样品,水分含量<0.5%ISPOLAN750ISPOLAN1100
温度
750
1100
密度DIN E2809 T.2g/cm3
Ca.0.95
Ca.0.95
压缩率ASTM F 36K%
≤25
≤2.5
回弹率ASTM F 36K%
≥25
≥30
抗拉强度DIN 52910


纵向 N/mm2
≥3.5
≥4.0
横向 N/mm2
≥1.5
≥2.0
在800℃下实验1小时


耐温失量DIN 52911%
17.0±2.0
17.0±2.0
厚度减少 %
≤2.5
≤2.0
表面减少 纵向 %
≤2.0
≤2.5
表面减少 横向 %
≤2.0
≤2.0
热传导系数400℃(平均)W/m.k
0.13
0.11

根据安装和操作条件情况不同,应用和加工技术也不尽相同,所以本资料只能当作非固定的指导准则,因此,不能根据这些数据推断提出任何保证要求。
